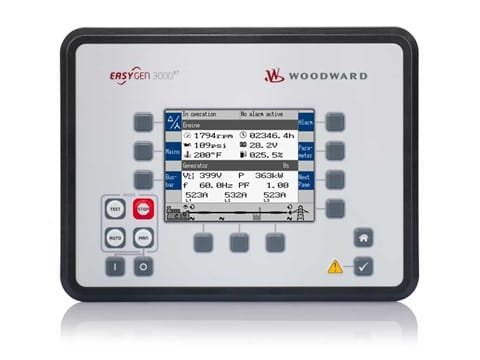

easYgen 3400XT/ 3500XT Series Control Genset Control for Complex Paralleling Operation

The easYgen-3500XT is available in two packages. P1, focused on complex paralleling applications Provides redundant Ethernet communication, LS-5 connectivity, and standard I/O set, while P2, Co-Gen/CHP model offers expanded onboard I/O set, 3-ph busbar voltage measurement capability and phase rotation monitoring between gen-busbar and busbar-utility. These packages are available without a display in a rugged metal housing suitable for back panel installations (easYgen-3400XT-P1 and easYgen-3400XT-P2 respectively). A sophisticated touchscreen remote panel (RP-3000XT) complements them as an operator control panel. A version of easYgen-3500XT (easYgen-3500XT-P1-LT and easYgen-3500XT-P2-LT) is designed to operate down to -400 C for outdoor applications.

Product Features
  • Built In Redundant E thernet
  • Power Measurement Class 1
  • Direct Connect Up to 690 V AC
  • AnalogManager & Editable Screens
  • Multi Interface ToolKit connectivity
  • Face plate with tactile buttons
  • Drop In replacement
