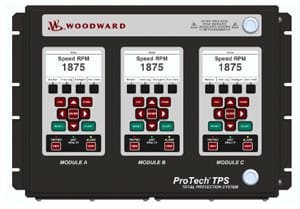

ProTech® TPS – Total Protection System

The ProTech TPS is a safety programmable logic controller (PLC) with integrated overspeed protection designed to safely shut down any plant process equipment, engine, or steam, gas, or hydro turbine upon sensing a safety event. This stand-alone safety device accepts 10 discrete or analog inputs per module (30 total) and one speed (MPU or PROX) input (3 total), uses custom-programmed logic to determine when a true safety event has occurred, then issues a shutdown command to safely shut down the equipment or turbine.

Product Features
  • IEC61508 SIL-3 Certified
  • API670 & API612 Compliant
  • Overspeed protection
  • Acceleration & deceleration protection
  • User-programmable logic
  • 2-out-of-3 voting
  • High availability (TMR)
  • Online testing
  • Online repair
  • Auto test routines
  • Trip valve health monitoring function
  • Trip, alarm & test logs
  • Modbus communications
  • Password security protection
  • 12 millisecond response time (independent voted models)
  • Internal frequency generator
